Description

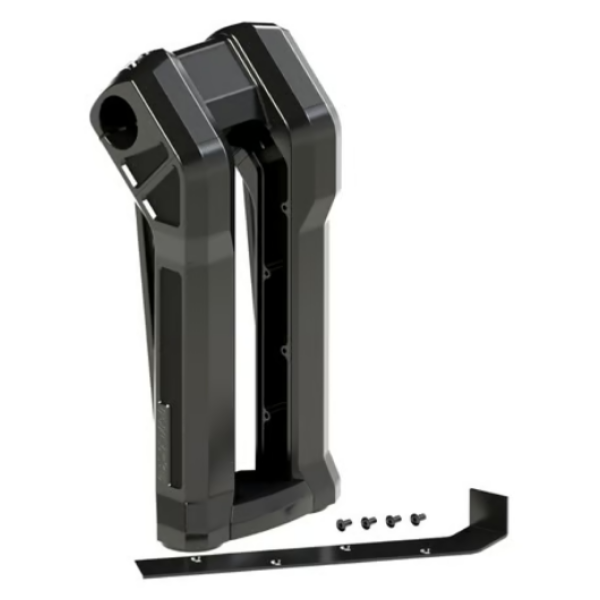

For models with dash mounted instruments. Top riser clamp is closed, so not suitable for installing a digital instrument. Black anodized finish. 3D CNC machined from high strength aluminum. Striking pullback Clubstyle design that will do any Clubstyle bike owner proud. With built-in 2" pullback. Risers come with a 1-1/4" (32mm) handlebar clamping area. This can be reduced to 1-1/8 or 1" with the optional available Rick's riser reducer kits. - Integrated cable channels, so no visible cables between the risers - Includes cover for cable channels - Works with OEM steering lock - Handlebar clamp 'Torque Bar' for optimal strength and flex control - Cable cover for triple clamp - Riser mounting screws included - With 'rigid mount' kit 4 x stainless steel bushing for no movement in the bars & ultimate control Note: When running other than 1-1/4" (32mm) handlebars at the clamping area, see Rick's riser reducer kits 709603 for 1" (25.4mm) or 709604 1-1/8" (approx. 28mm) handlebar diameter. Note: See Rick's optional 709601 'Offset Riser Plate' when you think your handlebar is too far forward for your arm length / preference. This is a riser relocation plate used to bring the handlebars 40mm closer to the rider for better control and long distance comfort. Note: With risers come with approval.
Fitment
18-20 FXFB Fat Bob 107; 18-24 FXFBS Fat Bob 114 (NU)
| |
BRAND |
YEAR |
FAMILY |
MODEL |
| |
Harley-Davidson |
2024 |
Softail |
Fat Bob 114 FXFBS |
| |
Harley-Davidson |
2023 |
Softail |
Fat Bob 114 FXFBS |
| |
Harley-Davidson |
2022 |
Softail |
Fat Bob 114 FXFBS |
| |
Harley-Davidson |
2021 |
Softail |
Fat Bob 114 FXFBS |
| |
Harley-Davidson |
2020 |
Softail |
Fat Bob FXFB |
| |
Harley-Davidson |
2020 |
Softail |
Fat Bob 114 FXFBS |
| |
Harley-Davidson |
2019 |
Softail |
Fat Bob 114 FXFBS |
| |
Harley-Davidson |
2019 |
Softail |
Fat Bob FXFB |
| |
Harley-Davidson |
2018 |
Softail |
Fat Bob 114 FXFBS |
| |
Harley-Davidson |
2018 |
Softail |
Fat Bob FXFB |
